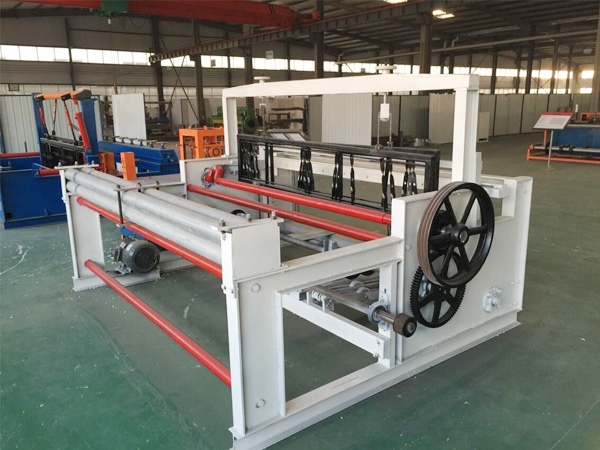

The series of Semi-automatic crimped wire mesh machine weave crimped wire net of steel, iron, lead and stainless steel wire with big diameter. The net is weaved by the machine after the thick wire is formed to crimp by the rolling machine.
main machine
Weaving mesh size：3mm-120mm
Weaving wire：2.0mm-7.0mm
Maximum weaving width:2.0m(can be booked)
Weaving speed:25-35times/min
Dimension：length2200mm ×width3500mm×hight1800mm
Power：4.0 KW
weight：2.5T
crimping wire machine
Dimension：length3900mm×width1300mm×hight1300mm
Crimping speed:45-60m/min
Power :2.2kw
Weight：0.6T
